Motocycle Dash cam

MVR G1 PRO Install Description

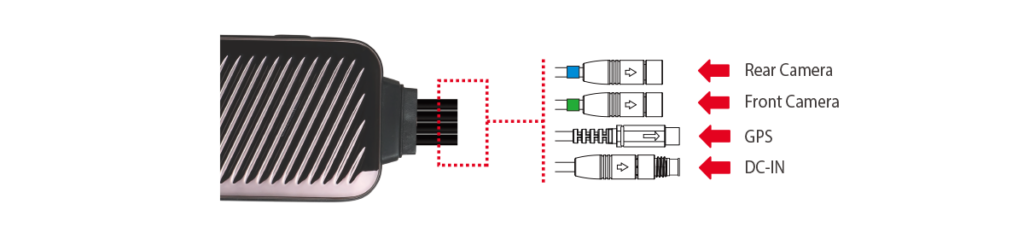

Cabling Configuration Diagram

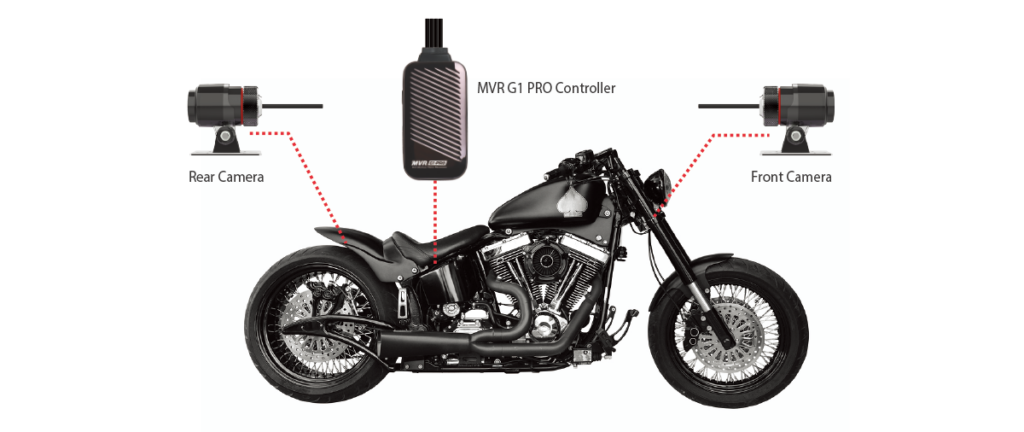

Direction to Mounting to the motorcycle

The Image that Mounted to the motorcycle

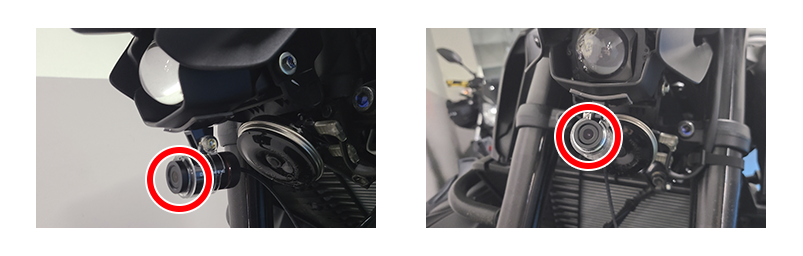

Front camera

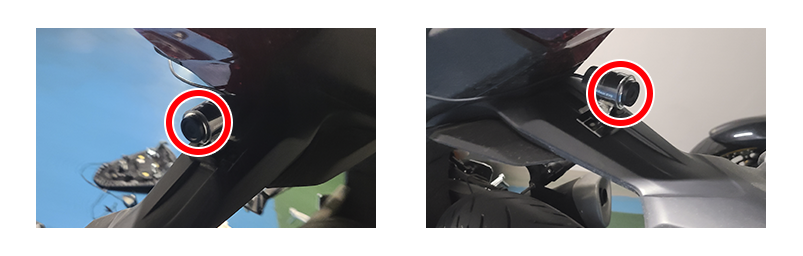

Rear camera

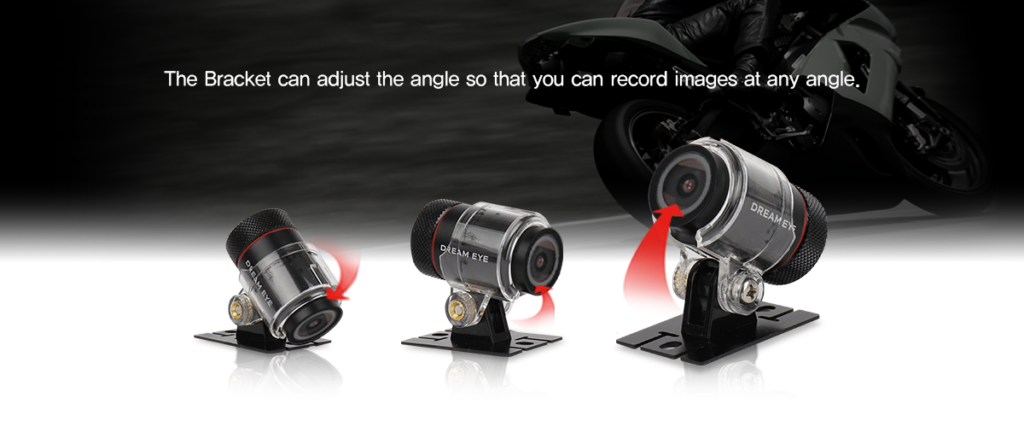

The MVR G1 is mounted integrally with the vehicle body with a separate bracket(mount) regardless
of the front and rear of the motorcycle, and is recorded stably with less shaking and shaking.

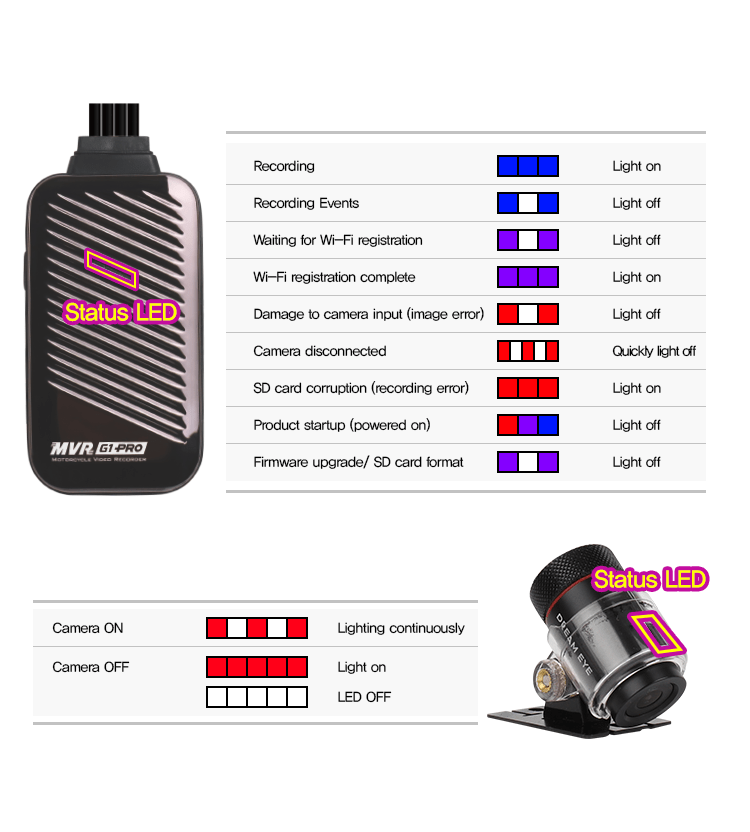

LED Status Scenario

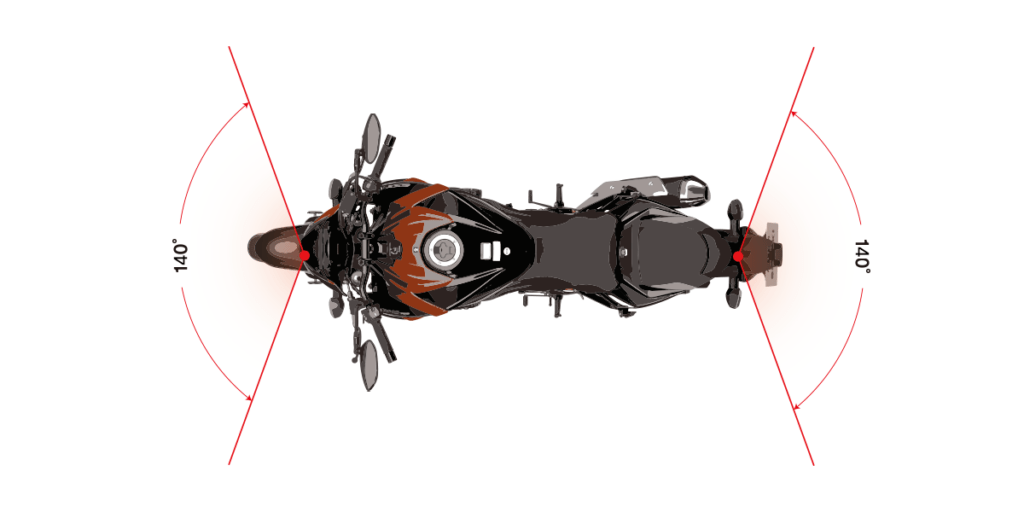

Optimal viewing angle without distortion

WIDE VIEWING ANGLE

Left/right distortion-free viewing angle approximately 140 degrees forward/rearward about 140 degrees

Excessive angle of view refracts the image, causing side effects such as distortion and loss of distance.
The GNET system has an optimal shooting angle of 140 degrees and Rear cam with a 140-degree angle of view without this problem,
the situation of side accidents is recorded more reliably, and images without distortion of left / right / up / down are provided.

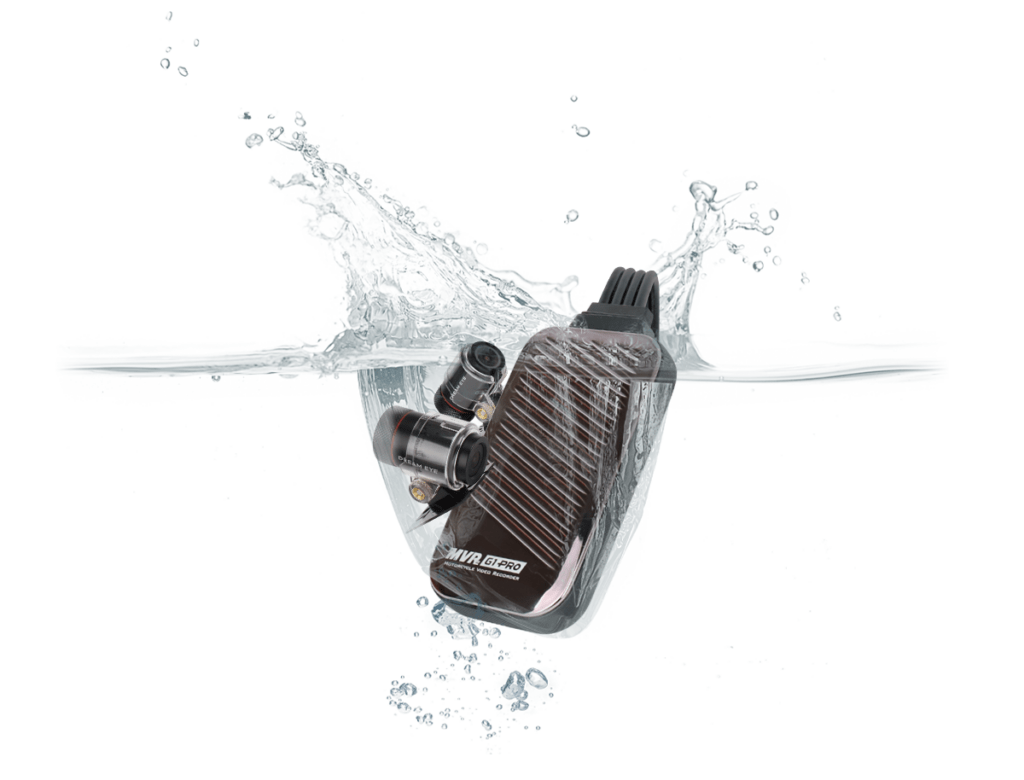

For High pressure and protection against dust (IP69K)

MVR G1 PRO MOTORCYCLE

(Controller / FULL HD CAM)

As an essential function, it can be used without problems in high-pressure sprinkling as well as during rain, snow, dust, and washing

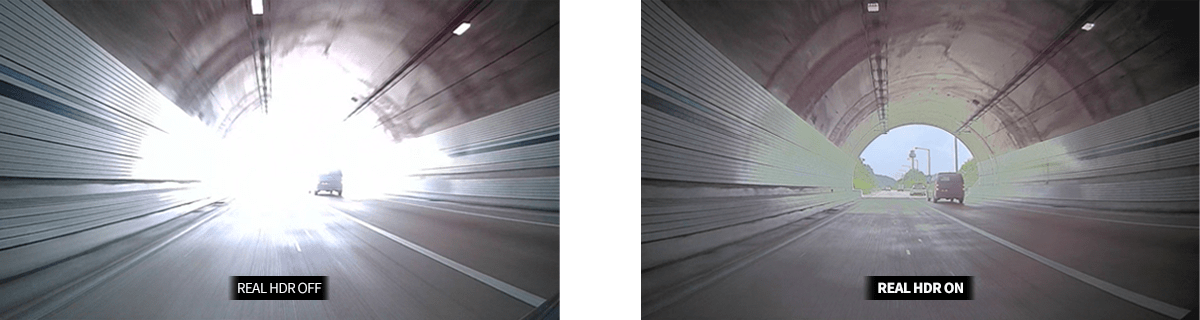

Clear Recording Quality when Driving at Night

REAL HDR

Real HDR is installed to remove light blurring when driving at night,
and it shows clear recording quality in various lighting conditions such as backlight and tunnels.

Video codec(HEVC)

*HEVC(High Efficiency Video Coding)

H.265

H.265 compression rate is up to 2 times higher than H.264.
It means that users can use 256GB SD card as 512GB SD card.

H.264

H.265

Smartphone Link via Wi-Fi®

G-NET APP

User-friendly GUI

User convenience has been further upgraded using intuitive icons for anyone to operate conveniently

User-focused
Firmware Upgrade

After accessing the firmware
configuration by APP, the latest
firmware can be automatically
searched for and downloaded.

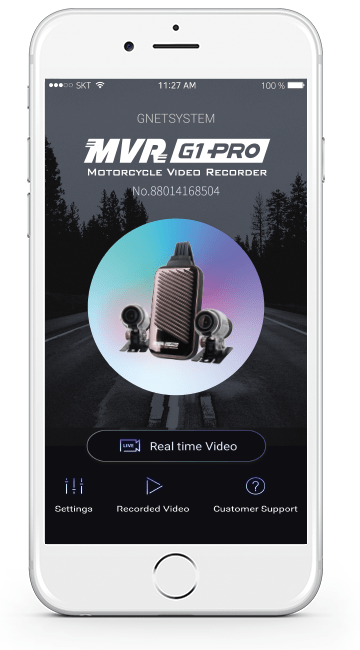

All the features you need at once!
Easy and convenient GNET APP

You can easily set up device registration,
real-time video setup, recorded
video list, and customer support
through the main screen.

Customized
configuration by APP

Using the Smartphone APP,
you can upgrade the firmware
and play video as well as
configure various settings

*You can only connect your smartphone with WiFi® dongle connected to the dash cam(WiFi® dongle is sold separately)
*Disable IOT/WiFi feature when CLOUD is enabled

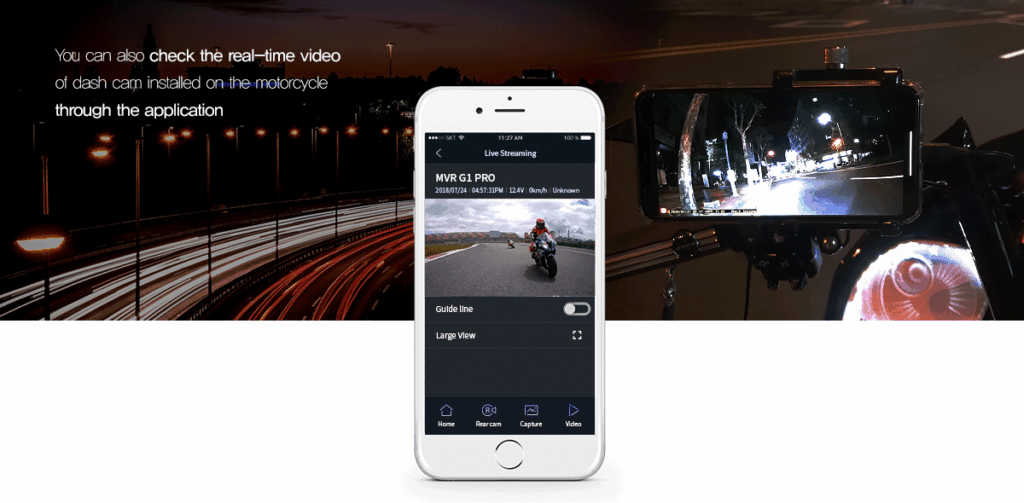

Live Streaming

In the application, you can select the front and rear screens to view the live images

Recording video

You can download and view recorded videos from the app

Convenient and Diverse Functions

FUNCTION

HIGH TEMPERATURE
TEST PASS

G-Net has been passed the high-temperature test.
Differs from other brand dash cameras
which shut down the power because they can
not withstand high temperatures.

MEMORY CARD AUTOMATIC
RECOVERY AND SELF-FORMAT

Unlike other companies’ dash cam, which
require users to format periodically, JDR file system
with excellent reliability is
applied for convenient use without regular format.

SECURITY LED

It is equipped with intelligent security LED
to prevent crimes, door ding etc.
It detects movement with a clear view in parking mode
and starts recording automaticall

EXTERNAL GPS

You can check at a glance the data image
received from the GPS while driving.
* External GPS is optional (sold separately)

Compitable GNET PC VIEWER

GNET PC VIEWER

Easily play and review recorded videos using PC viewer

The viewer offers various functions such as zoom, lane drawing, and frame-by-frame playback.
Backup features include AVI/MP4 export, tampering protection, thumbnail previews, and interval search.

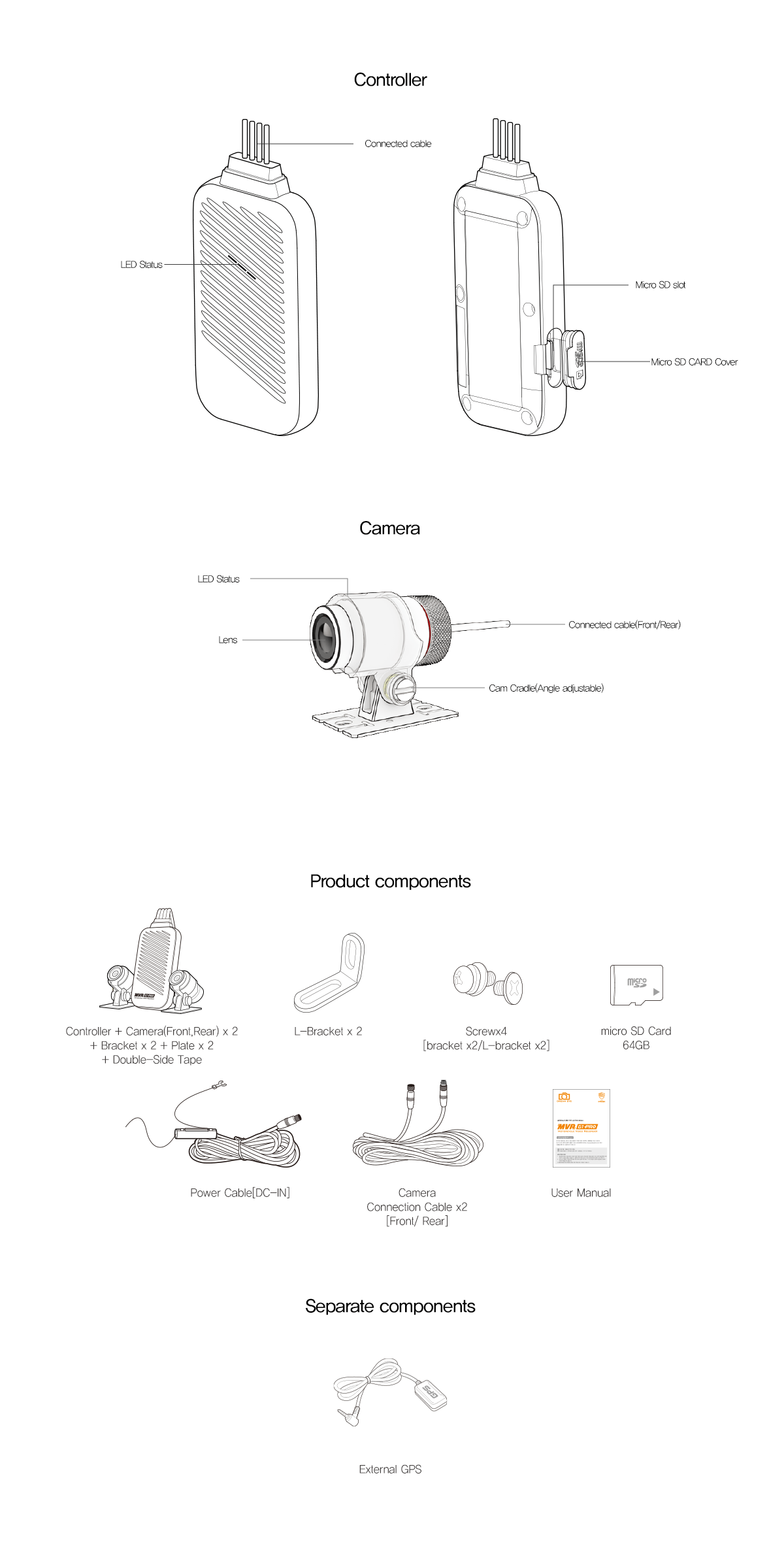

MVR G1 MOTORCYCLE DASH CAM

SPECIFICATION

※The image of components may be different from the real components.
※Specifications and Components may be changed without notice for improving quality.
※We are highly recommend to use a Genuine Memory card from Gnetsystem.3A
